消防设备电源系统
消防设备电源系统构成

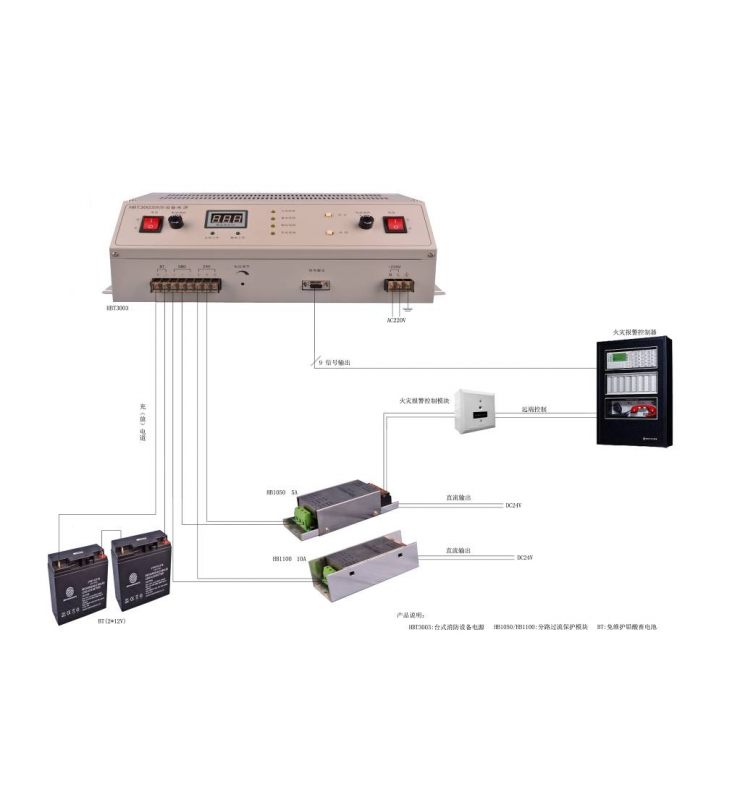

消防设备电源直流供电系统,参照《GB16806-2006》国家标准设计,并执行《Q/CYHWE0001-2012》企业标准,它由消防设备电源、免维护铅酸蓄电池组(每组由规格为DC12V的2节蓄电池串联而成),分路短路保护模块(规格分别为5A、10A输出)构成,可实现不间断DC24V直流电输出供给,是楼宇内众多消防电子设备的主要供电装置。另外本系统还具有多输出回路分路短路保护功能,可实现工程现场任一输出回路短路状况下(且短路解除后,直流输出自动恢复)其它输出回路正常工作的功能。还可实现“火灾报警联动控制器”通过现场控制模块远程控制各路输出回路中某一回路直流电的关断与送出,提高了消防设备电源系统的供电能力及工程适应性。

本图中消防设备电源也可由面板式、壁挂箱式消防设备电源替代、同样可实现上述诸多功能。

Fire alarm power supply system comply with Chinese national standard GB 16806-2006 and Q/CYHWE0001-2012 enterprise standard. The system consists of power supply devices, free maintainance lead-acid battery and over-current protection module (5A/10A), provide filtered and uninterrupted DC24V in buildings. Additionally, through over-current protection module, system realizes multiple output monitory and control individually.

Hover’s power supply product in the system can be build-in type, table type, wall mounted and rack mounted type.
